Equipped with an extensive fleet of CNC press brake machines, we are structured to process high-volume production with exceptional accuracy and repeatability.
METAL BENDING SERVICES: Our metal bending centre operates a fleet of seven CNC press brakes from ERMAKSAN and HACO, supported by an additional press brake dedicated exclusively to prototyping and development work. As an Indian–European subcontract sheet metal manufacturer, this comprehensive press brake capacity—combined with the expertise of our highly skilled operatives—enables us to deliver precision metal bending services across a wide spectrum of component sizes, complexities, and production volumes.

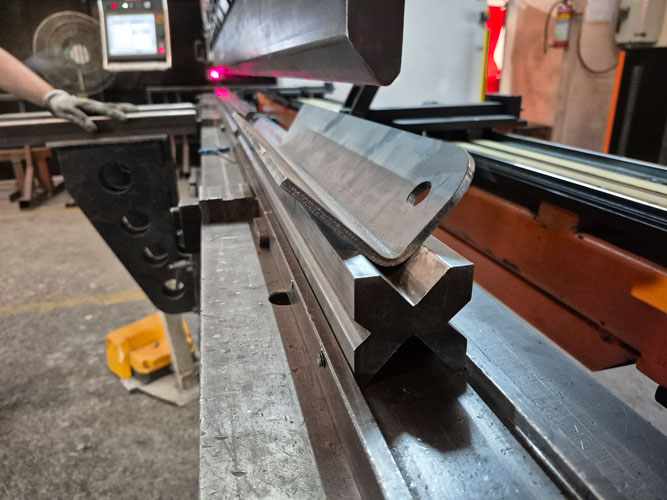

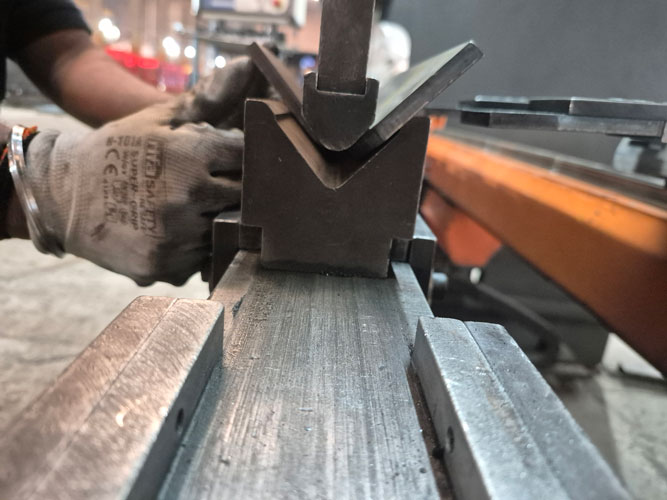

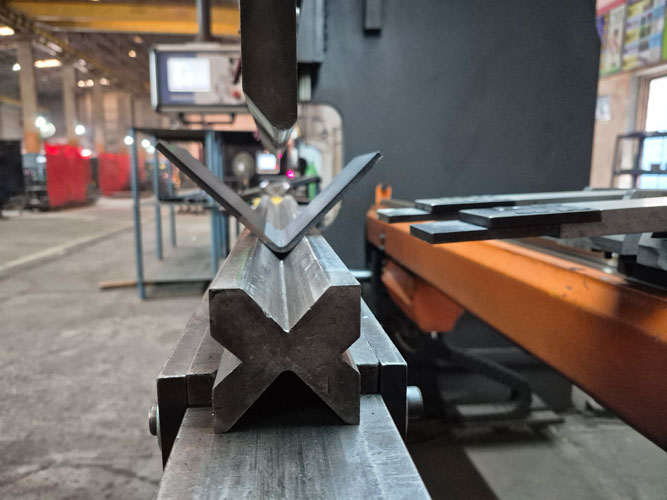

Metal bending, metal folding or press braking, CNC metal bending, also known as press braking, is a manufacturing process used to bend or fold sheet metal into precise shapes and forms. The process involves applying controlled force to the material using a top tool (punch) pressed into a bottom tool, commonly referred to as a V-die.
By selecting different tooling combinations, a wide variety of bends, angles, and formed features can be produced with high accuracy and repeatability. CNC control ensures consistent results, precise positioning, and efficient production across both simple and complex components.

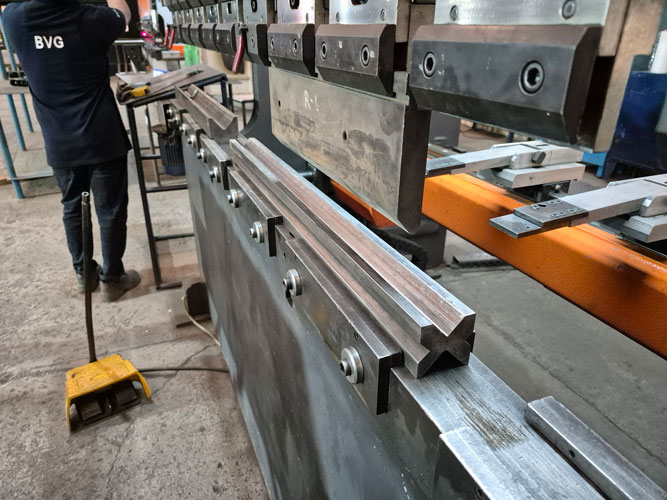

Press brake tooling: We maintain a comprehensive range of tooling for HACO and ERMAKSAN .
press brakes, enabling us to produce a wide variety of forms, bend profiles, and radii, including specialised safety edges. In addition to our extensive tooling inventory, we maximise productivity through the use of Automatic Tool Changer (ATC) technology across our HACO and ERMAKSAN machines. The ATC system significantly reduces setup times—by up to 80% compared with manual tool changes—resulting in increased machine uptime. This advanced automation also allows operators to focus on other value-added tasks, improving overall operational efficiency, reducing lead times, and delivering faster, more cost-effective solutions for our customers.
Equipped with a large fleet, our CNC press brake machines process high volumes of parts with accuracy and repeatability.

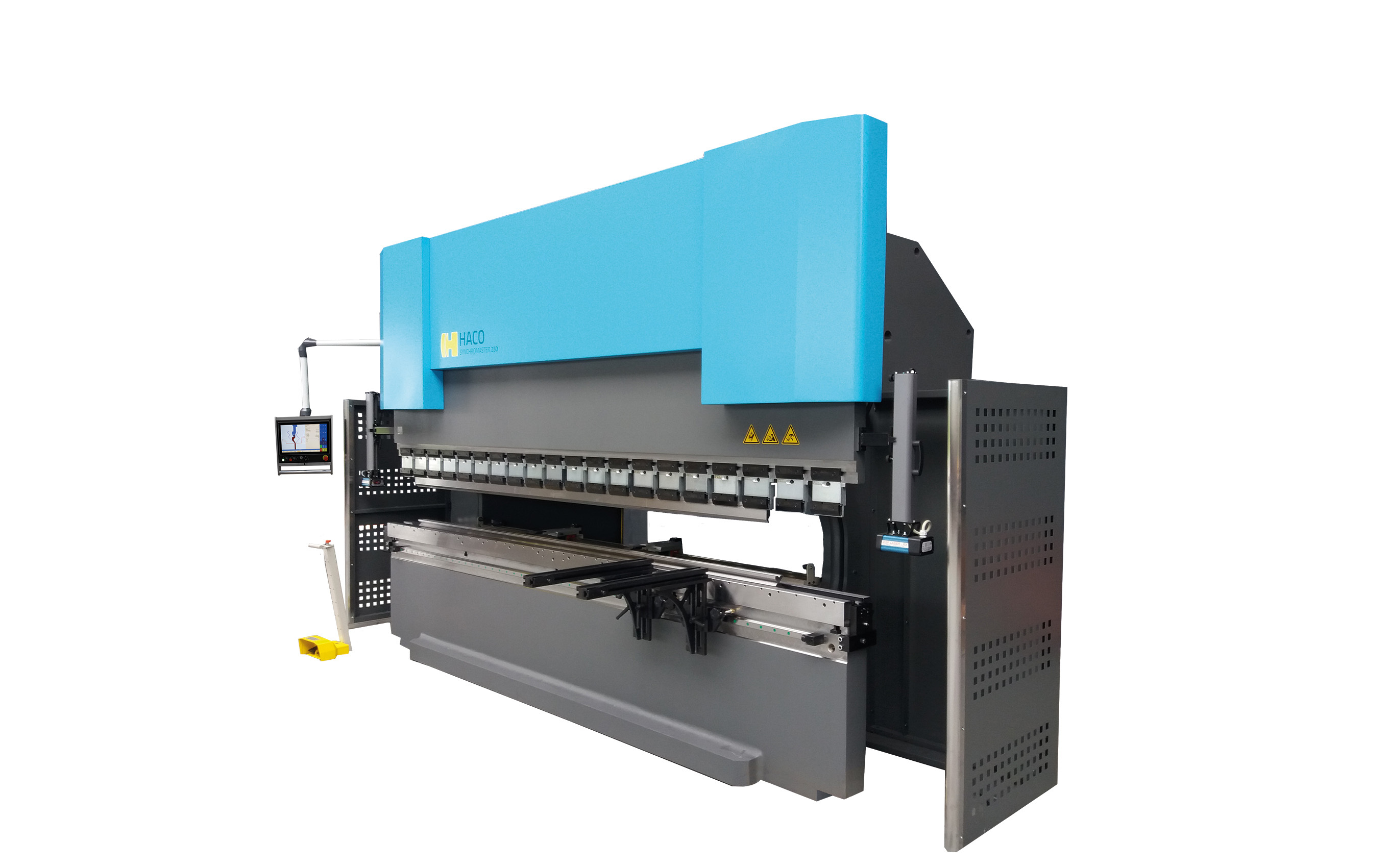

HACO ERMS30150
The HACO ERMS30150 (also referenced as HACO ERM 30150/EuroMaster-S 30150 in many listings) is a robust hydraulic CNC press brake engineered for precision sheet-metal bending in industrial fabrication environments. It typically features a working length of around 3100 mm (3 m) and a bending capacity of approximately 150 tons, offering a strong balance of size and force for medium to heavy bending tasks.The machine’s welded steel frame and synchronised hydraulic system ensure solid structural rigidity and consistent bending performance.It is equipped with a CNC backgauge system, often with multi-axis capability, enabling accurate positioning for complex bending operations and improved repeatability.

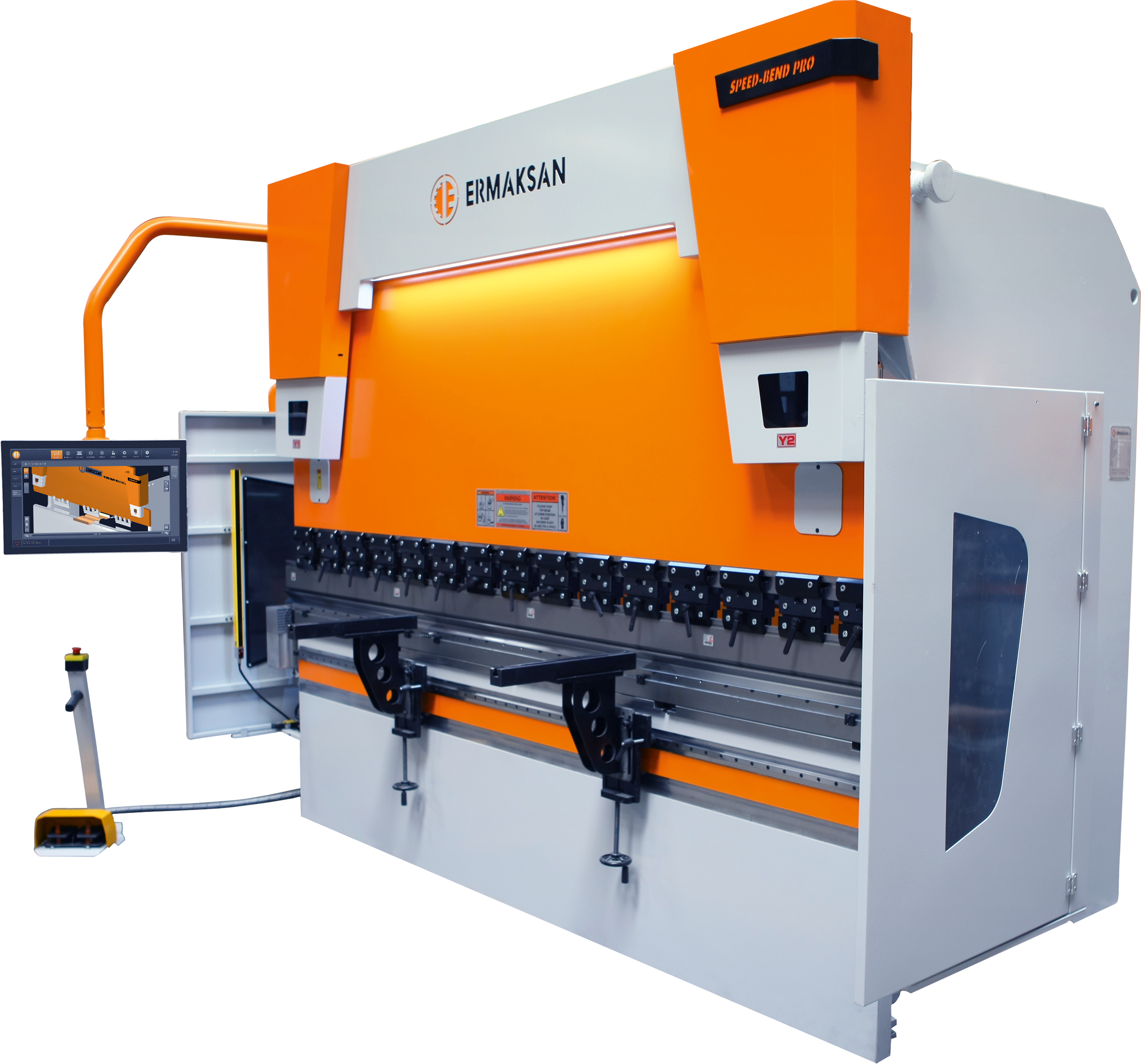

ERMAKSAN SPEED BEND PRO ERM122 Press Brakes
The ERMAKSAN SPEED BEND PRO ERM122 is a high-performance CNC hydraulic press brake designed for precise, fast, and efficient sheet-metal bending. Built for industrial-grade fabrication, it offers increased daylight opening and a long upper-beam stroke, enabling deeper and more complex bends. The machine supports a wide range of tonnages and lengths, making it suitable for both medium and heavy-duty applications. Its CNC-controlled multi-axis backgauge system allows accurate positioning for complex bending operations, while the motorized CNC crowning system ensures consistent bending results across the full working length. With advanced CNC controls, operators can program jobs in 2D or 3D and even import DXF/DWG files for seamless workflow. The robust hydraulic structure provides high repeatability and fast cycle times, boosting productivity. Safety features such as laser finger protection and light curtains enhance operator safety during operation. Designed for sectors like automotive, fabrication, and heavy machinery, the ERM122 delivers a strong combination of speed, precision, and reliability..
